The moon, the moon’s nodes and climate change sea level rise – Part II

[Posted by Chuck Almdale]

Rising sea levels are in our present and in our future. Due to the little-known effects of the moon’s orbital tilt and the precession of the orbital nodes, we are in the middle of a 9.3-year dampening of the sea level rise, and currently see little-to-no rise. But in 2026-2035, we enter a 9.3-year-long enhancement of sea level rate-of-rise and will see an approximately four-inch permanent rise.

To recapitulate part I:

• The moon’s gravitational pull creates a bulge in the ocean. Inertia in the water creates another bulge on the opposite side of the planet.
• The rotation of the earth causes these bulges to move around the globe once per day.
• The additional gravitational pull from the sun at new moon and full moon causes the monthly cycle of highest highs and lowest lows in the daily tide.
• The elliptical orbit of the moon around the earth causes supermoon at perigee and micromoon at apogee.
• The elliptical orbit of the earth around the sun causes annual highest and lowest tides centered on the January 4 perihelion, and annual most-moderate tides at aphelion six months later.

The moon’s tilted orbit and the nodes

The moon’s orbit is not only an ellipse with the earth at one focus, it is tilted at 5.14 degrees to the ecliptic (the plane of earth’s orbit around the sun). A total solar eclipse can occur when the moon is between sun and earth, but usually doesn’t because the moon is above or below the plane of the ecliptic; we see it pass above or below the sun, and its shadow does not touch the earth. Thus, no eclipse.

But there are two points where the the moon’s orbit passes through the plane of the earth’s orbit. These are called the moon’s north and south nodes. If you’re an astronomy professional or amateur or a professional astrologer, you know about the nodes; otherwise, probably not. Imagine a dinner plate lying on a table, with a larger hoop surrounding it. If both are lying flat on the table, they’re in the same plane, Tilt the hoop slightly (imagine the descending half passing downward through the table) and now their planes intersect at only two points, which are the nodes.

In the above figure, the yellow circle is the plane of the ecliptic, the path the sun appears to move through as the earth circles the sun. The blue circle is the moon’s orbit. At the ascending (north) node, the moon’s path moves above (north of) the ecliptic; at the descending (south) node the moon’s path moves below the ecliptic. The angle between these two planes—ecliptic and moon’s orbit—is always 5.14 degrees.

Solar and lunar eclipses occur only where the moon’s orbit falls exactly between the earth and sun, and the two nodes are the only places where that can occur. Thus total eclipses of the sun or moon can occur only when the moon is passing through its north node or south note at the same moment that the earth-moon-sun are in a direct line, or syzygy. Because of this, the technical term for supermoon is perigee-syzygy of the Earth-Moon-Sun system.

The two nodes are always opposite one another but are not fixed relative to the constellations. The nodal points slowly circle the earth, moving backwards through the zodiac (the twelve constellations lying on the plane of the ecliptic) over an 18.6 year period. For example, a node moves backwards through Virgo (astrological sign 6) for 1.5 years, then enter Leo (sign 5) and move slowly backwards through that constellation for 1.5 years, and so on through the twelve constellations of the zodiac. As the timing of the nodal cycle intersects with eclipses, perigees and perihelions, all of which affect the tides, the movement of the nodes also affects the height of the tides over an 18.6 year period.

The Wobbling Moon

It does this because the moon’s orbit wobbles, in the manner of a dinner plate or large coin—slowing down after being spun—wobbling just before it completely settles down. Just as the wobbling plate’s point of contact with the table moves around in a circle in a fraction of a second, so do the moon’s orbital nodes move, or precess, backward through the zodiacal constellations on the ecliptic, taking 18.6 years to make a complete circle.

In the YouTube video below, start at time 1:30 to best see the wobbling dinner plates. As the spinning slows down and the entire plate edge approaches the table surface, it visually replicates quite well the moon’s orbital wobble. Or watch the entire manic 3.25-minute act of Erich Brenn, inspiration to millions back in the 1950’s, something to take people’s minds off the Cold War.

Scientists have long wondered why the moon’s orbital plane is not the same as the plane of the ecliptic. In 2015 two planetary scientists – Kaveh Pahlevan and Alessandro Morbidelli – published a paper describing computer simulations showing that the “effect of collisionless encounters [near-hits] between the Earth-moon system and large objects, similar to what we today call asteroids, leftover from the formation of the inner planets…. could have gravitationally jostled the moon into a tilted orbit.” Their results were published in the journal Nature. (From EarthSky)

The earth’s axial tilt relative to the plane of the ecliptic is currently 23.5° (another cyclic angle, varying from 22.1° to 24.5° over a 40,000-year period). When you add this to the 5.14° declination (tilt) of the moon’s orbit to the plane of the ecliptic, we find that the declination of the moon’s orbit relative to the plane of the earth’s equator varies from 28.725° to 18.134° north or south of the equator. This declination varies over the same 18.6-year cycle as does the precession of the moon’s nodes. It is this changing declination relative to the equator (not to the ecliptic) that causes the moon’s gravitational pull on oceanic waters to fluctuate over this 18.6-year period.

The nodal cycle and the rising ocean

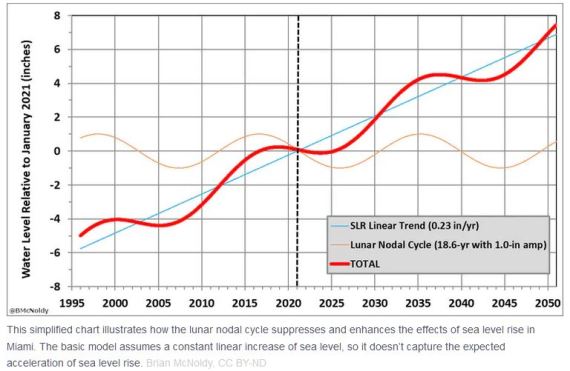

We are currently in a period when the nodal cycle’s influence on tides is waning. (See chart below.) This part of the 18.6-year cycle began in 2017 and ends in 2027, at which point the cycle’s influence begins to rise, peaking in 2035.

Projecting the sea level to rise 0.23 inches per year (a linear projection*), displayed as the straight blue line in the chart above, we see the effect of this rise interacting with the influence of the nodal cycle as the thick wavy red line. This line takes a sharp upturn around 2027, then plateaus in 2037. It never significantly drops after that. Each plateau is roughly 4 inches higher than the preceding plateau.

*[Most climate scientists expect the rate of sea level rise be non-linear, i.e. to speed up. But it’s easier to create the above chart using a linear increase.]

Each plateau begins 18.6 years after the start of the previous plateau, or 9.3 years after the end of the previous plateau. In 2037, expect the sea level to be approximately four inches higher than it is right now, then an additional four inch increase by 2056, four more inches by 2075 and again by 2095, at which point sea level will be 16 inches higher than today. And it keeps going. The moon’s 18.6-year orbital wobble is billions of years old. It’s not going away. As long as the sea level rises—fast or slow, linear or non-linear—we will see 9.3 years of plateauing or slight dropping alternating with 9.3 years of rapid rise.

These are projections, of course. Perhaps the projected linear trend of sea level rise will be 0.23 inches. Perhaps it will be more, perhaps less, or (more likely) non-linear. One thing for certain, it won’t be zero. It is rising and it will continue to rise for decades to come.

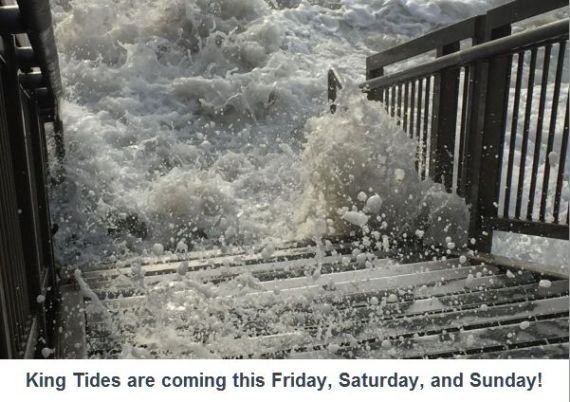

Malibu Beach king tide (Larry Loeher 1-13-21)

One reason civilizations collapse is degrading infrastructure, especially when combined with difficult climatic or geological events: little ice ages, droughts, deforestation, floods, sea level rise, rising temperatures, earthquakes, volcanoes, plagues, pandemics. (I’m sorry if this is starting to sound apocalyptic.) It is often more costly to repair structures or infrastructure that it was to construct them. Sometimes peoples just pick up and start over elsewhere.

When you combine four, eight, twelve, or sixteen inches of sea level rise with the effects of storms, including hurricanes, there’s going to be a lot of expensive destruction along our coasts. Businesses, highways, homes, subways, ports, parks, piers – the list goes on. We’d better be ready to write off a lot of structural and financial loss, both individually and as a society. I’m sure our insurance companies have contingency plans for dealing with the claims. Don’t be surprised if their plans involve exception clauses for flooding, or using bankruptcy to seek protection from claimants.

Alarming photo courtesy of the California Coastal Commission
